Products > Tube and Pipe > Carbon Steel Tube and Pipe > DIN2393 Welded precision steel tube

Product name : DIN2393 Welded precision steel tube

Item : 20146721513

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

Quick Detail:

DIN2393 Welded precision steel tubes

Standard: DIN2393

Grade: E155,E195,E235,E275,E355

OD. Range:6mm – 114.3mm

Wall thickness: 1mm-15mm

Length: Max length 12M

Type: Seamless

Packaging detail: Bundles with plastic paper packaged or wooden box package

Delivery date: 10-30days

Description:

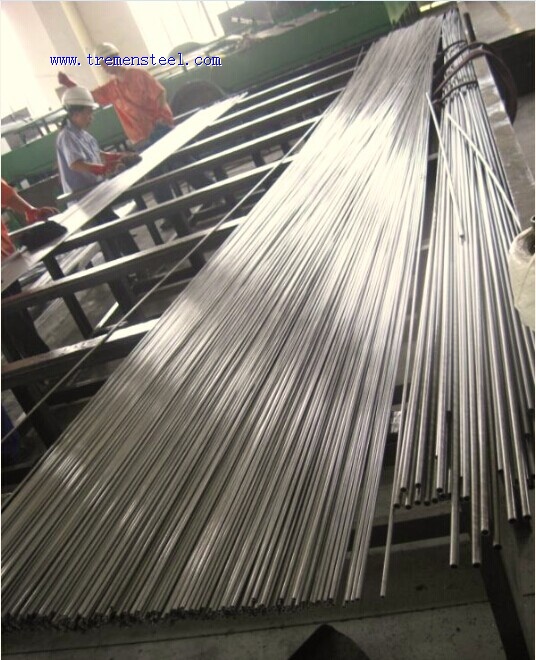

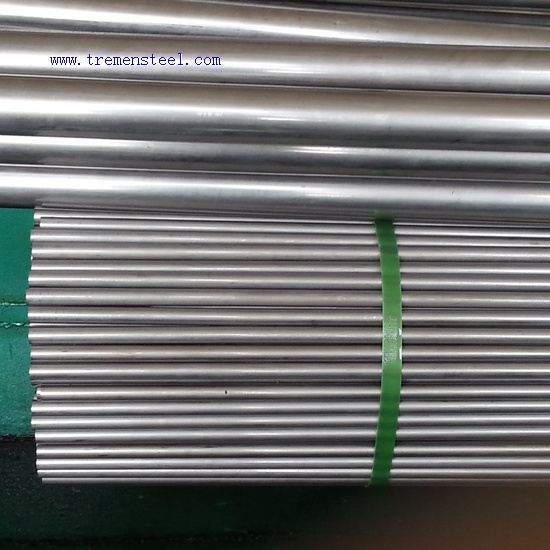

Precision steel tubes

To be used in hydraulic system, automobile and precision machinery parts for cars and cylinder.

Standard: DIN2393

Grade: E155,E195,E235,E275,E355

OD. Range:6mm – 114.3mm

Wall thickness: 1mm-15mm

Length: Max length 12M

Type: Seamless

Packaging detail: Bundles with plastic paper packaged or wooden box package

Delivery status: BK(+C), BKS(+SR), BKW(+LC), GBK(+A), NBK(+N)

Applications:

hydraulic system

automobile

precision machinery parts for cars and cylinder.

Auto industry

Oil cylinder tube

Grade and Chemical Composition ( ％ )

Grade			Chemical Composition (%)
Steel Name	Steel Number	C(Max)		Si(Max)	Mn(Max)	P(Max)	S(Max)	Cr	NI	Cu	Mo	V
E155	1.0033	0.11		0.35	0.70	0.03	0.025	-	-	-	-	-
E195	1.0034	0.15		0.35	0.70	0.03	0.025	-	-	-	-	-
E235	1.0308	0.17		0.35	1.20	0.03	0.025
E275	1.0225	0.21		0.35	1.40	0.03	0.025
E355	1.0580	0.22		0.35	1.60	0.03	0.025

Mechanical properties

Steel Grade			Minimum values for the delivery condition
Steel Name	Steel Number	(+C c )			(+LC c )		(+SR)				(+A d )			(+N)NBK
Steel Name	Steel Number	Rm Mpa		A%	Rm Mpa	A%	Rm Mpa	ReH Mpa	A%	Rm Mpa		A%	Rm Mpa		ReH e Mpa	A%
E155	1.0033	400		6	350	10	350	245	18	260		28	28		270-410	155
E195	1.0034	420		6	370	10	370	260	18	290		28	28		300-440	195
E235	1.0308	490		6	440	10	440	325	14	315		25	25		340-480	235
E275	1.0225	560		5	510	8	510	375	12	390		21	21		410-550	275
E355	1.0580	640		4	590	6	590	435	10	450		22	22		490-630	355
