Product name : SA192 Seamless Boiler tubes
Item : 201911309532
Price : USD800-USD1000

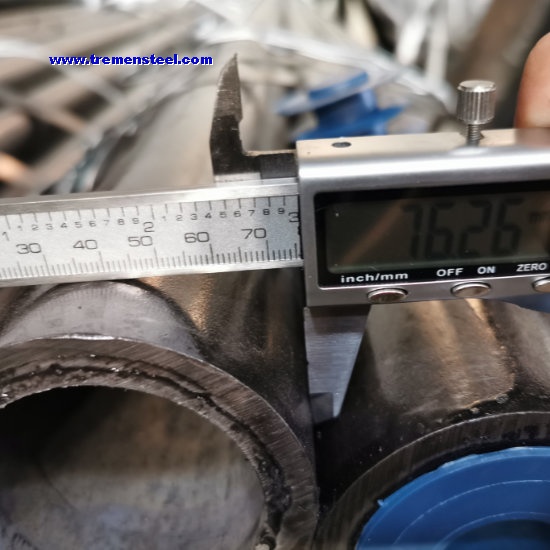

 Enlarge Image                   Back
             [Next Product]→


  Details:
SA192 Seamless Boiler Tubes

Standard: ASTM A192 / ASME SA 192

Description Name: SA 192 Seamless boiler tubes; A192 pipes; A192 carbon steel tube; ASTM A192 seamless tubing; ASTM A192 carbon steel pipe; SA192 SEAMLESS PIPE; ASTM A192 cold drawn seamless steel tubes; ASTM A192 pipes and tubing; carbon steel tube; Seamless steel tube; steel tube.

Size: 1⁄2 in. to 10 in. [12.7 to 254 mm]

Schedule: 1.5mm-30mm

Shape: Round

Production type: Hot rolled and cold cold drawn.

Length: Single random length/ Double random length or as customer’s actual request max length is 27m

Grade: A192 / SA192

Heat Treatment: Hot-finished tubes need not be heat treated. Cold- finished tubes shall be heat treated after the final cold-finishing at a temperature of 1200°F [650°C] or higher.

SA192 Tube Chemical Compositions

Chemical Components (%)

C

Si

Mn

P

S

Mo

Cr

V

0.06-0.18

≤0.25

0.27-0.63

≤0.035

≤0.035

/

/

/


SA192 Tube Mechanical Tests Required

Mechanical properties

Tensile
Strength (Mpa)

Yield
Strength (Mpa)

Elongation
(%)

Hardness
(HRB)

≥325

≥180

≥35

≤77








ASTM A192 / ASME SA192 Tube Wall Thickness Tolerance

Seamless, Cold-Finished Tubes

Outside Diameter
In. (mm)

Wall thickness Tolerance %

Over (+)

Under (-)

1 ½ (38.1)
and under

20

0

Over 1½ (38.1)

22

0



SA192 Tube Outside Diameter Tolerance

Cold-Finished Seamless Tubes

Outside Diameter
In. (mm)

Permissible Variations In. (mm)

Over (+)

Under (-)

Under 1 (25.4)

0.004 (0.1)

0.004 (0.1)

1 to 1 ½ (25.4 to 38.1), Incl

0.006 (0.15)

0.006 (0.15)

Over 11⁄2 to 2 [38.1 to 50.8], Excl

0.008 (0.2)

0.008 (0.2)

2 to 21⁄2 [50.8 to 63.5], Excl

0.010 (0.25)

0.010 (0.25)

21⁄2 to 3 [63.5 to 76.2], Excl

0.012 (0.3)

0.012 (0.3)



SA192 Tube Cut Length Tolerance

Cold-Finished Seamless Tubes



Outside Diameter,
In.(mm)

Cut Length, in.(mm)



Over (+)

Under (-)



All Sizes

3⁄16 [5]

0 [0]



Under 2 [50.8]

1⁄8 [3]

0 [0]



2 [50.8] and over

3⁄16 [5]

0 [0]



Under 2 [50.8]

1⁄8 [3]

0 [0]



2 [50.8] and over

3⁄16 [5]

0 [0]



These permissible variations in length apply to tubes before bending. They apply to cut lengths up to and including 24 ft [7.3 m]. For lengths greater than 24 ft [7.3 m], the above over-tolerances shall be increased by 1⁄8 in. [3 mm] for each 10 ft [3 m] or fraction thereof over 24 ft or 1⁄2 in. [13 mm], whichever is the lesser.







SA192 Tube Hydrostatic Test Pressures

Each tube shall be subjected to the hydrostatic pressure test, or instead of this test, a nondestructive test may be used when specified by the purchaser.

Hydrostatic Test Pressures

Outside Diameter of Tube, in. [mm]

Hydrostatic Test Pressure, psi [MPa]

Under 1 [25.4]

1000 [7]

1 to 11⁄2 [25.4 to 38.1], excl

1500 [10]

11⁄2 to 2 [38.1 to 50.8], excl

2000 [14]

2 to 3 [50.8 to 76.2], excl

2500 [17]



SA192 Flattening Test

One flattening test shall be made on specimens from each end of two tubes selected from each lot or fraction thereof.

SA192 Flaring Test

One flaring test shall be made on specie- men from each end of two tubes selected from each lot or fraction thereof. These tubes shall be selected apart from those used for the flattening test.



Ordering Information

Orders for ASTM A192 / ASME SA192 should include the following, as required, to describe the desired material adequately:

l  Quantity (feet, meters, or number of lengths),

l  Name of material (seamless tubes),

l  Manufacture (hot-finished or cold-finished),

l  Size (outside diameter and minimum wall thickness),

l  Length (specific or random),

l  Optional requirements,

l  Test report required (see section on Certification of Specification A 450/A 450M),

l  Specification designation,

l  Special requirements.

Note:

l  Mill test certificates will be issued according to EN10204.3

l  The tubes Shall be Seamless, and the testing shall be as per A 450 / A450M.

Application:

Apply to the boiler and Superheater tubes for high-pressure service.

Packing:

1,Packed in wooden box or bundles protected with plastic paper, and suitably protected for sea-worthily delivery or as requested.

2,The Product marking shall include the ASTM A192 or ASME SA192, size, heat no., Lot No. and Manufacture name or logo.
