Product name : ASTM A249 stainless steel welded tube
Item : 2016720215325
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:

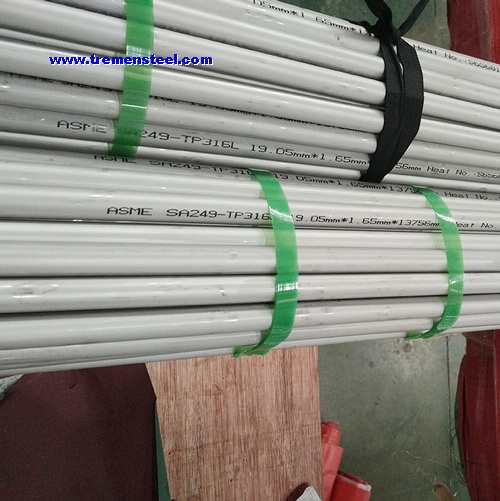

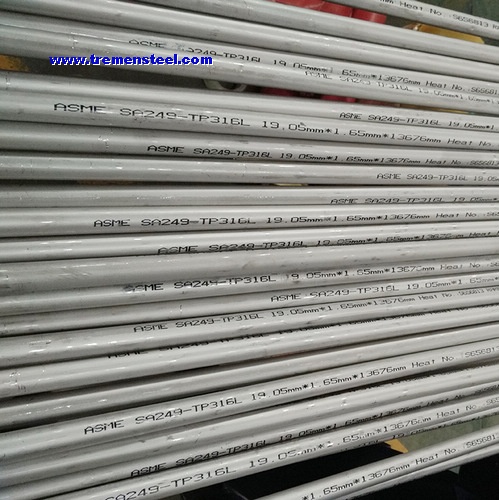

ASTM A249 stainless steel welded tube TP316L

Standard: ASTM A249 ,A312, A269, A270,A554,A358,A409 ,A778,A789, A790,A928 , EN 10217, EN 10296,DIN 17456, DIN 17458, JISG3459, JIS G3463, JIS G3467, JIS G3448,JIS G3468

Material:TP316/316L/316H,  304/304L/304H,   321/321H, 317/317L, 347/347H, 309S, 310S, 2205, 2507, 904L (1.4301, 1.4306, 1.4948, 1.4401, 1.4404, 1.4571, 1.4541, 1.4833, 1.4878, 1.4550, 1.4462, 1.4438, 1.4845)

Nominal Dia: 3/8" to 80" NB for welded pipe  ,Schedules: 5S, 10S, 40S, 80S, 10, 20, 30...120, 140, 160, XXS
All dimensions are in accordance with ANSI B36.19 and ANSI B36.10
Size range for tube:OD 1/4" to 80" (6mm to 2000mm),THk 0.02" to 2" (0.5mm to 50mm)

Length: 20 m(Max) or as your requirement

Process:
EFW (argon arc welding /TIG, plasma arc welding/PAW, and submerged arc welding/SAW)

Finish: Annealed & pickled, bright annealing, polished

Ends: Beveled or plain end, square cut, burr free ,Plastic Cap at Both end

Inspection & Test

1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material
2.100% Dimension & Visual Examination
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test, Transverse-guided face bend test
4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test  (ET or UT)
5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
6.Straightness Test  (optional)
7.Roughness Test (optional)
8.Intergranular Corrosion Test(optional)
9.Impact Test (optional)
10.Grain Size Determinations (optional)

NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION.
